AOI DLP-06 4-inch Acrylic Dome Port for PEN Mount


SKU: AOI-DLP-06 Category:

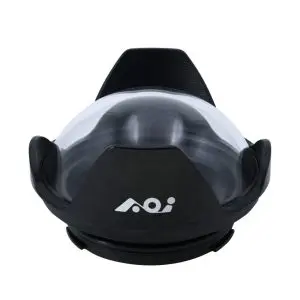

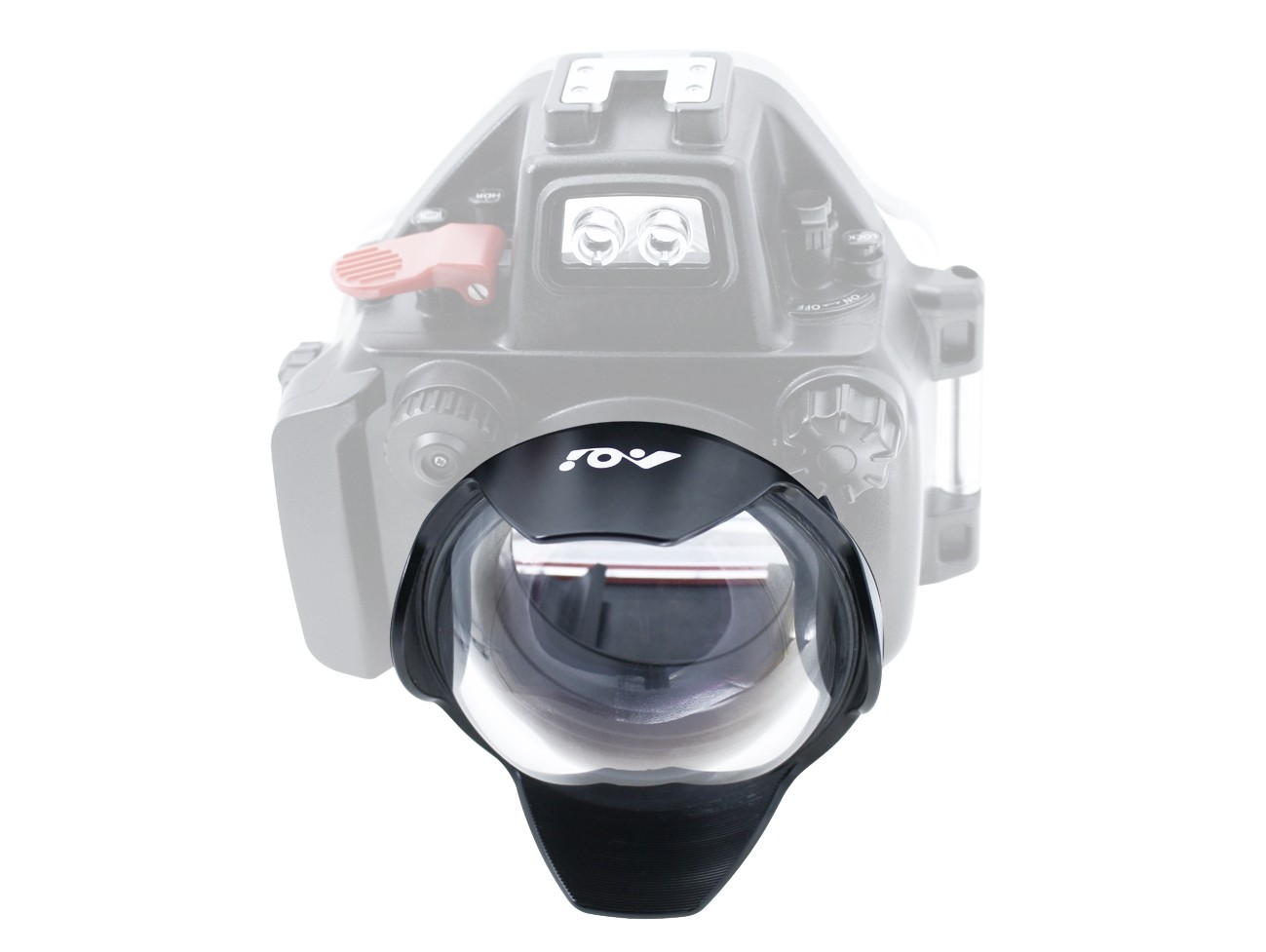

AOI DLP-06 4-inch Acrylic Dome Port for Olympus PEN Mount Housing

Product Details

The new AOI underwater ports for the Olympus PEN series housings allow you to expand your system with the addition of new lenses. The DLP-06 dome lens port is designed for the Panasonic 8mm Fisheye Lens and allows you to get up close and personal with the underwater world. The acrylic dome is a more affordable option over glass and can be polished if scratched.


Model DLP-06
Description 4” Acrylic Dome Port for Olympus PEN Mount Housing
Recommended for Camera Housings : Olympus Housing PT-EP05/06/08*/10/11*/12/13/14*
(* must add ADAPTER AD-LP-01)
Camera Lenses : Panasonic 8mm Fisheye Lens
/ M.Zuiko Digital ED 8mm F1.8 Fisheye PRO-BK#
(# must add Extension Ring ER-PN_PN-24 or ER-OD_OD-22)
Material Hard Anodized Aluminum Alloy Barrel
Optical Grade Acrylic Dome
Waterproof 60 Meters
Dimension 113mm (L) X68.7mm (H)
Weight 225 grams(Without Front Cover and Rear Port Cap)
Accessories Neoprene Dome Front Cover (DNC-01) and Silicone Rear Port Cap (PRC-02)
Weight 3 kg
