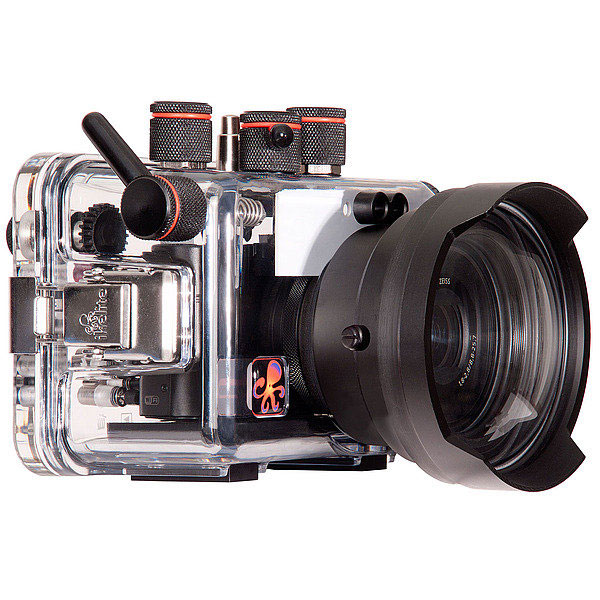

Ikelite 6430.3 WD-3 Wide Angle Dome

$480.00

SKU: 6430.3 Category:
Ikelite

Ikelite 6430.3 WD-3 Wide Angle Dome

Product Details

The WD-3 Wide Angle Dome provides a wider angle of coverage underwater without the distorted edges or vignetting (dark shadows in the corners of the image) that are typically present when using a standard wide-angle wet lens. At less than 6oz (168g), the WD-3 is also substantially lighter weight than the average wet lens and easier to use. The resulting image is crisp and clear edge-to-edge.

The WD-3 simply slides onto the standard port of the Ikelite housing— no modification to or replacement of the housing’s original port is necessary. The WD-3 can be removed and replaced underwater so there is no limit to the camera’s zoom or macro capabilities. Approximately 3/4 of the camera’s zoom range can be used with the dome in place (varies by camera model).

The conversion dome features a 0.75x conversion factor to correct for the refractive magnification of a flat port underwater. The WD-3 Wide Angle Dome is compatible with any Ikelite housing featuring a 3.0-inch diameter lens port. To check compatibility with Ikelite housings, please refer to the housing instruction manual.

The WD-3 Dome is only effective underwater. It requires water between the back of the WD-3 and the front of the housing’s lens port to affect the angle of coverage. Like any wide-angle wet lens, it may be used for split shots (half-in, half-out of the water), but there will be two water lines: one in front of the dome and one behind.

Specifications

  • Magnification 0.75x
  • 60m (200 ft) depth rating
  • Optical grade acrylic
  • Slightly positive buoyancy in freshwater
  • 168 g (5.9 oz)
  • 101 x 43 mm (4 inches diameter x 1.7 inches length )

In the Box

  • WD-3 Dome
  • Lanyard with cord lock # 0321.11
  • Neoprene cover # 0200.5



Weight 0.263084 kg
=
