Ikelite 64310 INON UWL-H100 28M67 Wide Angle

Call for Price

SKU: 64310 Category:
Ikelite

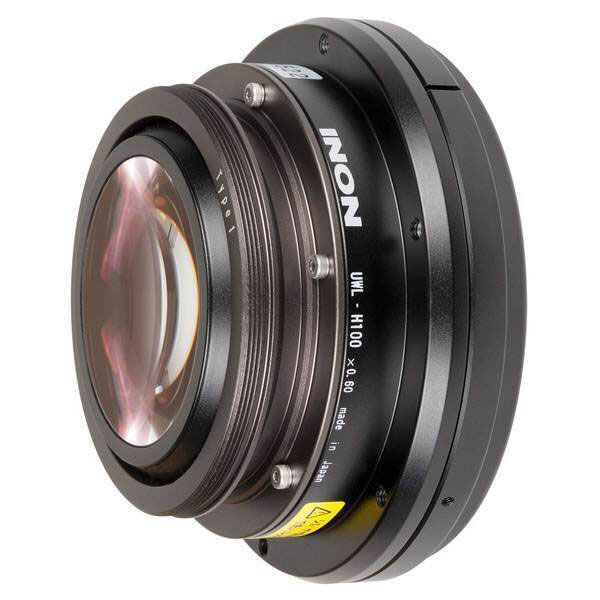

Ikelite 64310 INON UWL-H100 28M67 Type 1 Wide Angle Wet Lens

Product Details

The UWL-H100 was specifically designed for compact digital cameras with a 28mm equivalent wide angle lens. The maximum view angle is 100.8º underwater and 179º on land for fish-eye imaging.

The optional INON Dome Lens Unit II for UWL-H100 # 64311 increases the maximum viewing angle to 144.8º underwater for ultra-wide angle semi-fisheye imaging.

The lens is constructed of 4 highly refractive optical elements in 4 groups with coated glass to effectively suppress optical aberrations and improve lens performance.

The aluminium 67mm threaded ring attaches directly to housings and adapters featuring a 67mm thread.

Angle of coverage will vary depending on focal length of the camera and distance from the front of the camera to the back of the UWL-H100 lens. Some vignetting (dark shadows around the edges of the image) may be present. Vignetting may be reduced or eliminated by zooming in slightly and/or cropping the image in post production.

Specifications

  • Corrosion-resistant aluminum alloy / rigid black almite
  • Optical glass with dual side anti-reflective coating
  • 4 elements in 4 groups
  • 0.60x magnification (afocal)
  • Focal length infinity
  • M67-0.75 thread
  • 555g(19.6 oz)
  • 90.4 x 45.4 mm (3.6 diameter x 1.8″)
  • 60m (197ft)
Weight 0.616886 kg
=
